Model: LDS-320
Introduction: Widely used, the special shape of the parts can also be customized according to customer requirements. The machine uses microcomputer control, automatic packaging process.
E-mail: [email protected]
Tel/Whtasapp: +86 17388602385
Application:
1. Fasteners: screw, bolt, nut, washer, rivets, nails etc.
2. Plastic/Rubber Parts: wall anchor, rubber o-rings, toys, lego building bricks, small plastic parts.
3. Hardware Parts: hardware components, hardware connectors, metal parts etc.
4. Furniture Accessories: furniture connectors, furniture fasteners, furniture fittings, furniture accessories, door handle, hinge etc.
5. Others: small hardware or plastic parts, regular shape or irregular shape of parts.

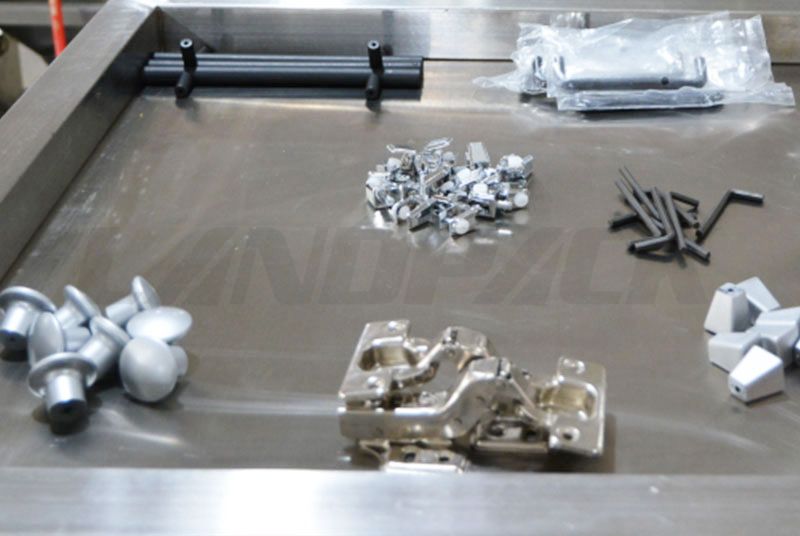

Samples:
Features:
1. Tailored to the screw samples of the vibration plate, linear vibration arrangement, and sophisticated counting control device to ensure that each bag is accurate.
2. Packaging icon packaging materials, the machine advanced step control, with the use of color tracker can get the perfect icon design.
3. SCM control system, fault self-stop, self-alarm, self-diagnosis, safe and easy to use.
4. Automatic display of the number of packages, the statistics can easily work out the machine.
Single-plate measurement of a single screw, if you need to pack a variety of specifications at the same time the need for multiple vibration disk supporting the use of.
Parameters:
| Type: | LDS-320 | Packing speed: | 30-60bags/min |
| Measuring range: | 0-100000 pcs | Bag length: | L:40-160mm |
| Bag Width: | 30-110mm | Max film width: | 220mm |
| Sealing type: | 3 sides,4 sides or back sealing | Packing film | All heating material (paper/PE,PET/AC/PE,etc) |
| Power: | 2500W | Net weight: | 800KG |
| Voltage: | 220V 380V/50HZ 60HZ | Overall size: | L1000*W700*H1600mm |
Video:
