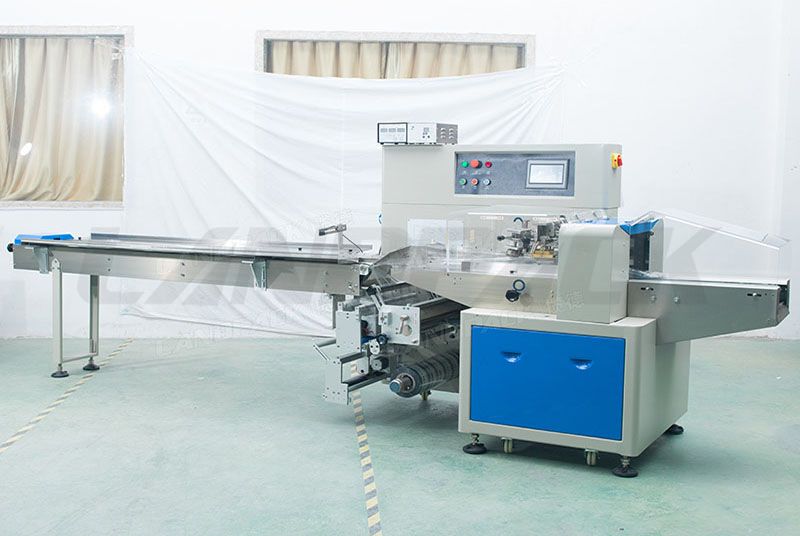

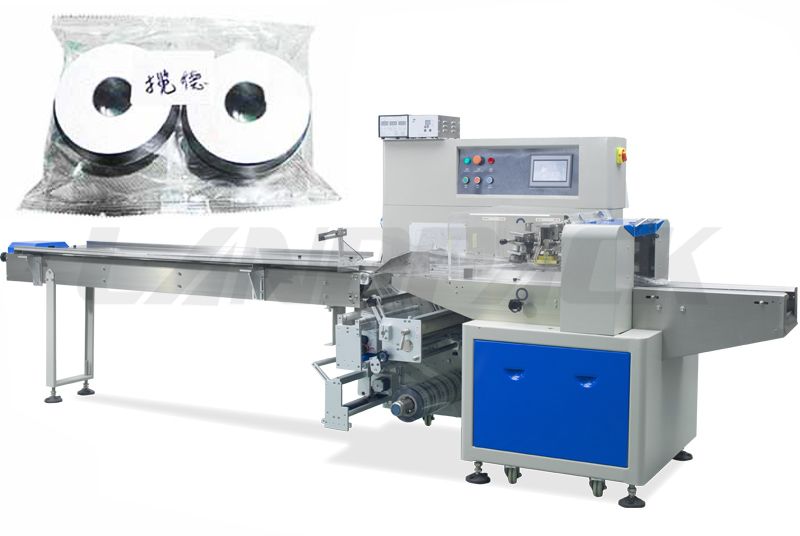

Hardware Accessories Horizontal Flow Wrap Packing Machine

Model: LP-450X

Introduction: Perfect for packing a variety of regular items into a pillow or gusset bag. Metal parts, industrial parts, hardware accessories, tapes, toys and other conventional items.

E-mail: [email protected]

Tel/Whtasapp: +86 17388602385

Application Samples Features Parameters Video Inquiry

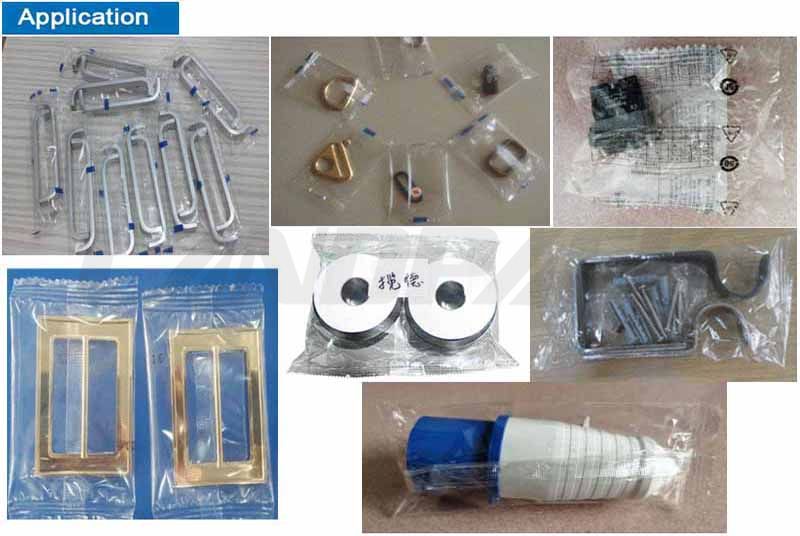

Application:

Introduction: Perfect for packing a variety of regular items into a pillow or gusset bag. Metal parts, industrial parts, hardware accessories, tapes, toys and other conventional items.

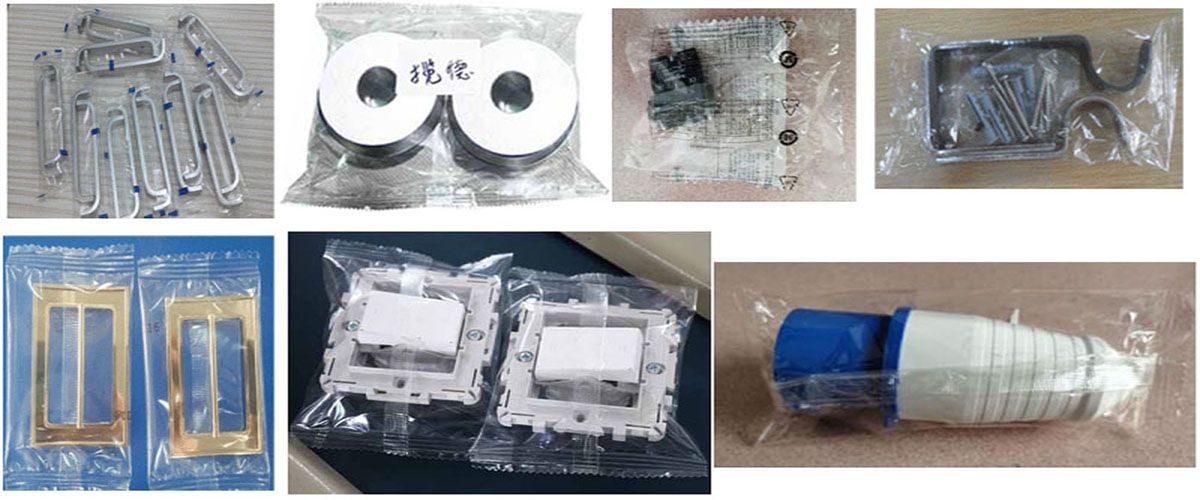

Samples:


Features:

1.Dual frequency conversion control, bag length can be setted and cutting in one step,saving time and films.

2.Interface features are easy and quick setting and operating.

3.Self diagnosis failure function, clear failure display.

4.High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.

5.Temperature independent PID control, more suitable for packing different materials.

6.Positioned stop function,without sticking knife or wasting film.

7.Simple driving system,reliable working,convenient maintenance.

8.All control is realized through software,easy for function adjusting and technical urgrade.

Parameters:

ModelLP-250XLP-350XLP-450X
Film WidthMax.250mmMax.350mmMax.450mm
Bag Length65-280mm65-330mm150-450mm
Bag Width30-110mm50-160mm50-180mm
Product HeightMax.45mmMax.65mmMax.80mm
Packing Speed40-230bag/min40-230bag/min40-150bag/min
Power220V 50/60Hz2.4KW220V 50/60Hz2.8KW220v 50/60Hz2.8KW
Machine Size(L*W*H)mm3920*670*13204020*720*13204150*820*1450
Machine WeightAbout 500kgAbout 550kgAbout 650kg

Video:

Connecting With Us

After receiving your inquiry, We will send you the quotation as soon as possible.

Tags: Pouch Packing Machine
