Model: LD-LS500-7
Introduction: Adopting spacking counting and fiber optics re-inspection or completed fiber optics counting, suitable to mixing packaging for1~40 varieties of items.
E-mail: [email protected]
Tel/Whtasapp: +86 17388602385
Application:
Application:
- Screw, bolt, washer, wood dowel and other kinds of regular shape furniture parts.
- Furniture parts (Fittings, Fastener, Hinge, Lock, etc.)
- Electronic machinery and appliance spare parts (Mobile Phone Screw, Cable Clip, etc.)
- Fastener (Screw, Bolt, Nut, Washer, Nail, Small Hardware, O-Rings, etc.)
- Plastic, pipe fittings (Pipe, Joint etc.)
- Clothes parts (Button, Slider etc.)
- Toys (Toy Building Brick, Dice etc.)
- Stationery (Mark, Pen, Clip etc.)
- Other regular shape parts
Our automatic packing machines can count and pack the same item or mixed items into the package. We obtain CE-CoC certificate for certain series of our packaging machine (ask our sales team for details).

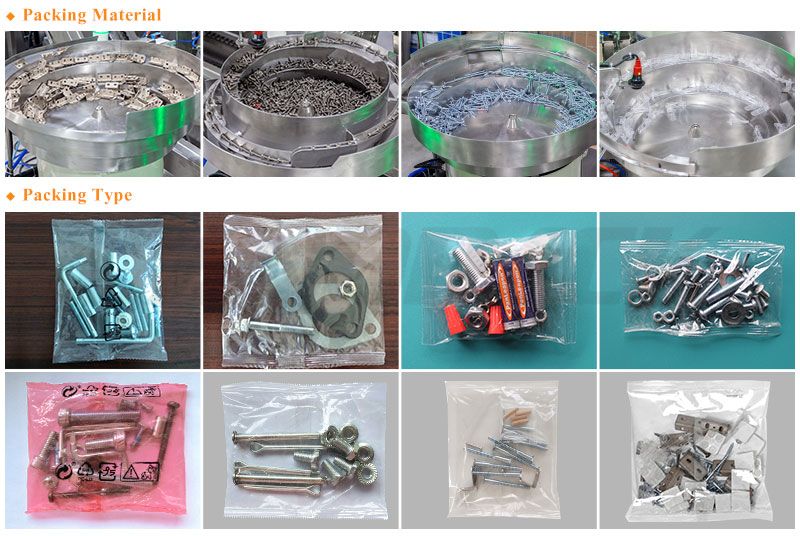

Samples:
Features:
1. Application: Screw, bolt, washer, wood dowel and other kinds of regular shape furniture parts.
2. Adopting spacking counting and fiber optics re-inspection or completed fiber optics counting, suitable to mixing packaging for1~40 varieties of items.
3. Solid sealing, smooth and elegant bag shape; high efficiency and durability, can be equipped with exhaust device, printer,labeling machine, transfer conveyor and weight checker.
4. Automatic ordering, counting, packing and printing etc. Easily adjust the quantity of screws in the bag, set the quantity of bags what you need, when meet, the machine will be stop automatically.
Parameters:
Model | LD-300H | LD-500H |
Packing size | L: 30-180mm, W: 50-140mm | L: 50-300mm, W: 90-250mm |
Max film width | 320mm | 520mm |
Packing material | OPP, CPP, Laminated film | |
Air supply | 0.4-0.6 MPa | |
Packing speed | 10-50 bag/min (Depend on the counting quantity and material size) | |
Power | AC220V or AC 380V 2KW-6KW | |
Machine size | Customized size |
