Model: LDH-900AC
Introduction: This Multifunction Bag Packing And Boxing Line is suitable for heavy bag packing and boxing, applying PE material film, beautiful sealing, and highly accurate weighing, saving labor costs and improving efficiency.
E-mail: [email protected]
Tel/Whtasapp: +86 17388602385
Application:
It is suitable for box and bag packing of various hardware, fasteners, and auto parts. Share a set of loading and weighing systems, saving cost and space.
Our packing machine is widely used in:
-Fastener(washer, screw, nut, washer, nail, small hardwares, etc.)
- Furniture spare parts
- Plastic pipe fittings (pipe, joint, etc.)
- Auto Parts
- Machinery and appliance spare parts
- Clothes parts (button, slider, etc.)
- Toy industry
- And other solid material counting/ weighing and packing.
It can pack the same items or mix items in the packs by quantity.

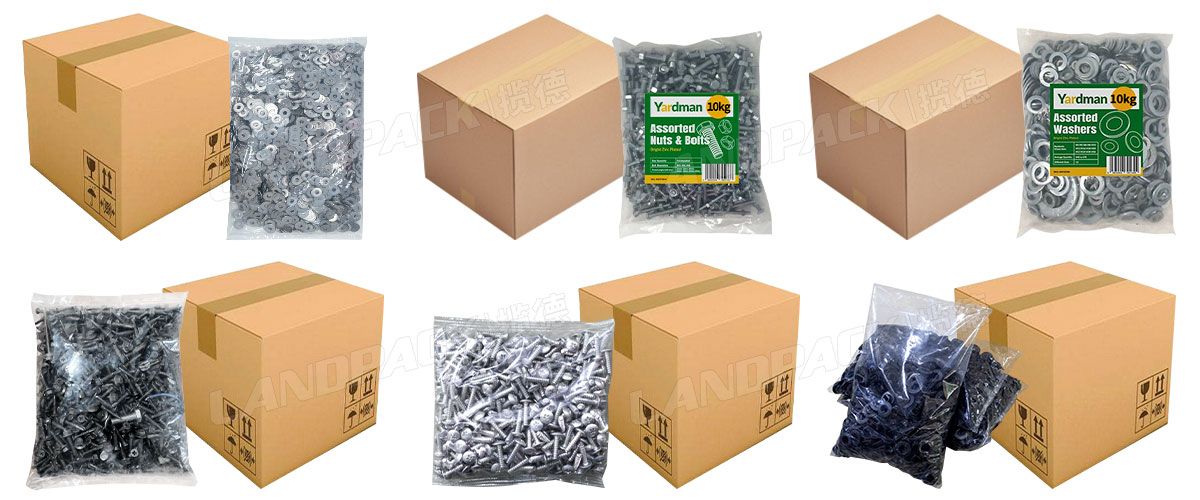

Samples:
Features:
1. This multifunctional line efficiently handles packing and boxing for metal washers.
2. The machine is designed for heavy bag packaging, ensuring durability and stability during the process.
3. By automating the packing and boxing process, this machine reduces the need for manual labor.
4. The machine works with PE material film, providing excellent sealing properties.
Parameters:
Main Machine Specification | ||||
Model | LD-420 | LD-520 | LD-720 | LD-900 |
Film width | Max.420mm | Max.520mm | Max.720mm | Max.900mm |
Bag length | 80-300mm | 80-350mm | 100-500mm | 100-600mm |
Bag width | 60-200mm | 100-250mm | 180-350mm | 260-430mm |
Film roll diameter | Max.320mm | Max.320mm | Max.320mm | 400mm |
Packaging rate | 5-60 bags/min | 5-60 bags/min | 5-55 bags/min | 5-20 bags/min |
Range of measurement | 150-1500ml | 2000ml | 4000ml | 1-25L |
Film thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Power | 220V, 50/60Hz, 2kw | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 4.5kw |
Machine size(LxWxH) | 1217*1015*1343mm | 1488*1080*1490mm | 1780*1350*2050mm | 2305*1685*2725mm |
Machine quality | About 650kg | About 680kg | About 750kg | About 950kg |
Video:
Connecting With Us
After receiving your inquiry, We will send you the quotation as soon as possible.
