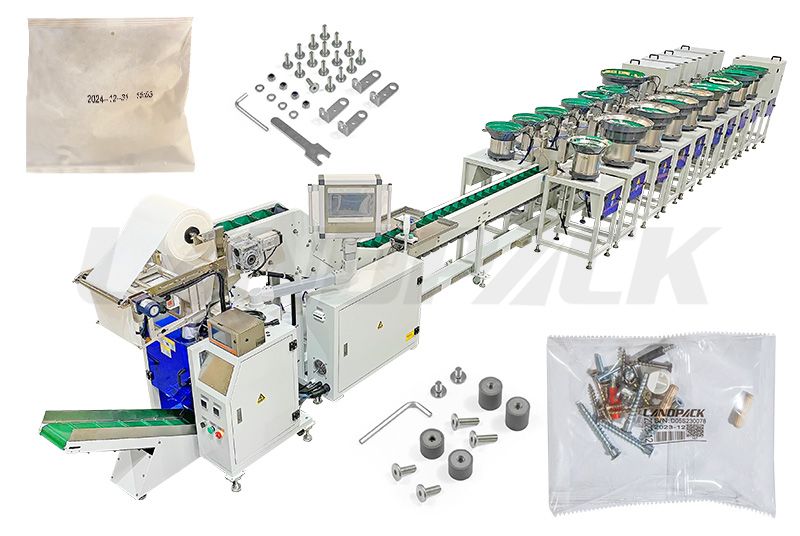

Full Automatic Counting Packing Machine With Soundproofing Vibration Disc

The Full Automatic Counting Packing Machine with Soundproofing Vibration Disc is ideally suited for precise, mixed‑count packaging of small hardware fasteners—such as screws, bolts, nuts, washers, and rivets—in electrical appliance, lighting, and metal‑decorative assembly lines.

It also excels in pharmaceutical and chemical applications, accurately counting and packaging tablets, capsules, and granules for hospitals and small‑scale manufacturers. With hygienic stainless‑steel vibration discs, it can handle food‑grade items—such as candies, confectionery, seeds, and various nuts—while maintaining compliance with food safety standards.

The integrated soundproofing enclosure ensures ultra‑low noise operation, making it ideal for noise‑sensitive environments like laboratories, white‑label packaging lines, and office‑adjacent production areas.

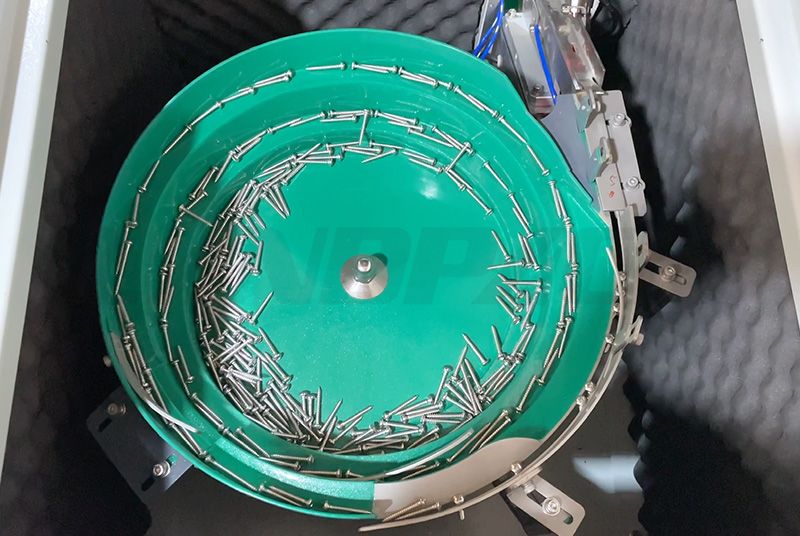

Feeding:
Bulk items—whether screws, nails, pills, or other small components—are loaded into a hopper or bulk container and then metered into the machine by a vibratory feeder or conveyor belt, ensuring a smooth, controlled flow of parts into the counting zone.

Counting:
As parts pass through the counting area, optical or photoelectric sensors detect each individual piece and transmit pulses to the control system, which accurately tallies the total in real time.

Packaging:
Once the exact count is reached, the machine releases the parts into pre‑opened packaging films or pouches (commonly OPP, CPP, or polyethylene), which have been positioned and held open at the fill station.

Sealing:
Filled bags are sealed by opposing heat‑sealing jaws that apply a precise combination of temperature, pressure, and dwell time to create a durable, airtight seal with a neat finish.

Labeling & Printing:
If required, the system can automatically apply pre‑printed labels or print barcodes, batch numbers, and other product information directly onto each package immediately after sealing.

Discharging & Collection:
Finally, sealed packages are cut free and gently discharged onto an outfeed conveyor or into collection bins—ready for downstream handling or case packing—without any manual intervention.
